Bad Wolf Technologies LLC, home of Datatoys video systems, offers a complete camera system built specifically for the Robinson R22 helicopter. Whether you’re training pilots, conducting aerial patrols, offering scenic tours, or enhancing situational awareness, our systems deliver professional-grade HD video with the reliability essential for airborne operations.
Designed for quick installation, a minimal footprint, and compliance with aviation standards, the R22 solution includes HD-SDI cabin and external cameras, lightweight airborne DVRs, aircraft-rated mounts, and all required accessories.
Need Something Custom? We’ve Got You Covered.
Looking for a DVR or camera setup tailored to your needs? We specialize in custom-built solutions for unique applications.
Contact us and we’ll reach out to you ASAP.

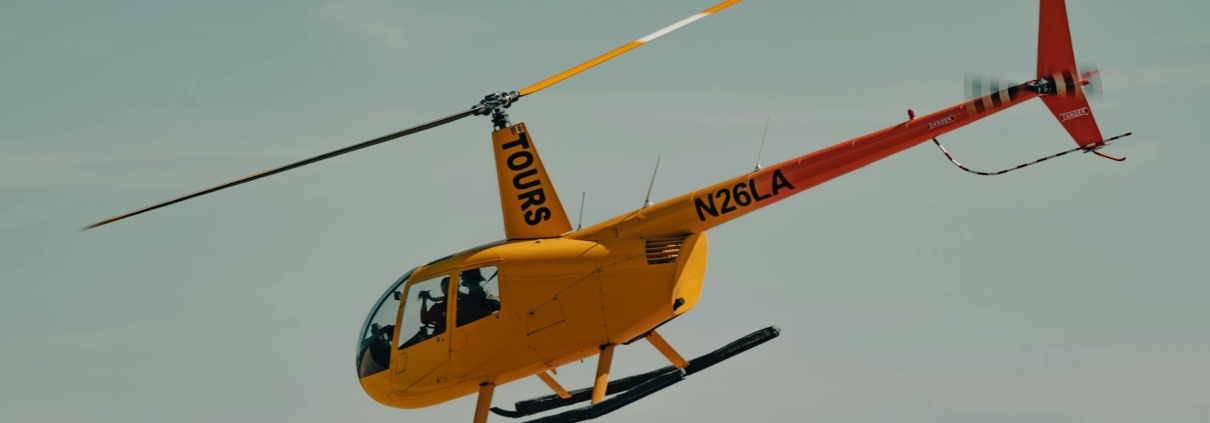

BUILT FOR THE ROBINSON R22 PLATFORM
The Robinson R22 remains one of the most popular training and utility helicopters in the world. Compact and efficient, it serves flight schools, private owners, and operators across a wide range of applications.
Datatoys has engineered a video system tailored to the R22’s lightweight airframe. It’s vibration-tested, EMI-shielded, and mission-ready for the demands of training flights, patrol missions, and tour operations.
Common R22 missions that benefit from onboard video systems include:
- Flight schools capturing student training sessions
- Scenic tour operators providing passenger flight recordings
- Patrol and survey teams monitoring pipelines, powerlines, or wildlife
- Law enforcement conducting aerial surveillance
- Private operators documenting flights or enhancing safety with external views
Our systems are lightweight, rugged, and built to endure the harsh conditions of continuous helicopter operations.
MINICUBE 29 HD-SDI MINI CAMERA – ROBINSON R22 CABIN CAMERA
The MiniCube 29 is a compact, rugged HD camera built for cockpit and cabin recording in the R22. Its ultra-small housing makes it ideal for tight spaces, while EMI shielding and vibration resistance ensure reliability in airborne conditions.
SPECIFICATION | DETAILS
Video Output | HD-SDI / 3G-SDI (1080p60)
Size | 29 mm × 29 mm × 29 mm ultra-compact cube housing
Image Sensor | 1/2.8” 2.38 Megapixel Sony Exmor CMOS Sensor
Minimum Illumination | Color: 0.2 Lux @ F1.2 / B&W: 0.01 Lux @ F1.2
Signal Reliability | Shielded against EMI and vibration
Mounting Options | Ceiling, dash, or bulkhead inside the cockpit/cabin
Applications | Training, tours, law enforcement, patrol
AIRKNIGHT HD DVR – ROBINSON R22 DVR RECORDER
The AirKnight HD is Datatoys’ flagship airborne DVR, delivering 1080p60 recording with GPS metadata overlay. Designed for aviation use, it’s compact, easy to install, and available in single or dual-channel configurations for the R22.
SPECIFICATION | DETAILS
Channels | 1–2 HD-SDI inputs
Recording Media | USB or SD removable storage
Resolution | 1080p60 HD video capture
GPS Support | Metadata overlay and flight path logging
Interface | Remote control unit or touchscreen panel
Features | Snapshot trigger, audio capture, dual storage options
Applications | Training, patrol, tours, surveillance
HELICOPTER HOIST CAMERA – ROBINSON R22 EXTERNAL OPTION
For operators using the R22 in search and rescue or external lift missions, Datatoys provides a fully qualified helicopter hoist camera system. Built to RTCA / DO-160G standards, it withstands salt spray, vibration, temperature extremes, and EMI interference.
SPECIFICATION | DETAILS
Qualifications | RTCA / DO-160G tested and certified
Video Output | CVBS (HD-SDI upgrade available)
Sensor | 1.3 Megapixel Sony Starvis IMX017 with Eyenix DSP
Housing | Waterproof, fog-proof aluminum alloy chassis
Weight | Under 1 pound for easy handling
Temperature Range | −40 °C to +55 °C (extended options to +75 °C)
Applications | SAR missions, air ambulance, law enforcement, utility hoist operations
R22 COMPATIBLE DVR RECORDING OPTIONS
Datatoys DVRs pair seamlessly with HD-SDI and CVBS camera systems, offering multiple channels, removable media, and rugged builds.
DVR MODEL | CHANNELS | STORAGE | FEATURES
AirKnight HD | 1–2 | USB or SD storage | GPS overlay, snapshot trigger, dual storage media, lightweight design
Red Hawk | 1 | Built-in SSD or USB | MIL-STD-461F/810G qualified, rugged MIL-SPEC recorder, network streaming capability
Corsair | 1–4 | Removable SSD | Modular multi-channel, HD-SDI and CVBS inputs, hundreds of hours of storage
POPULAR ROBINSON R22 CAMERA SYSTEM CONFIGURATIONS
MISSION TYPE | RECOMMENDED SETUP | NOTES
Flight Training | Cockpit camera + tail camera + AirKnight DVR | Enables instructor/student playback with GPS data
Tour Flights | Forward + passenger cabin cameras + DVR | Branded recordings, narration, USB delivery
Aerial Patrol | External camera + GPS-enabled DVR | Ideal for pipeline/powerline inspections, wildlife survey
Law Enforcement | Cockpit camera + FLIR/gimbal feed + DVR | Evidence video with GPS sync and secure storage
Remote Viewing | Tail + side-mounted cameras + live monitor | Improves in-flight situational awareness
OUTPUT FORMATS SUPPORTED
All R22 kits support HD-SDI output for uncompressed 1080p60 video. Optional CVBS composite output is available for legacy systems.
OUTPUT FORMAT | APPLICATION
3G-SDI / HD-SDI (1080p60) | Professional recording, live feeds
CVBS NTSC/PAL | Legacy infrastructure, backup systems
Dual Output | HD + SD streams simultaneously
ADVANTAGES OF USING DATATOYS ON THE R22
- Compact, lightweight hardware tailored for the R22
- EMI-shielded components for vibration-heavy environments
- Plug-and-play DVRs with removable USB/SD media
- Real-time viewing support
- Aviation-grade cabling and hardware
- Backed by US-based technical support
WHO USES DATATOYS SYSTEMS IN THE R22
- Flight schools and training programs
- Scenic tour operators worldwide
- Local sheriff and police aviation units
- Utility and infrastructure inspection teams
- Private pilots and cinematography crews
REQUEST YOUR ROBINSON R22 CAMERA SYSTEM
Bad Wolf Technologies / Datatoys builds every R22 package to meet your mission needs. A complete system includes:
- One or more HD-SDI cameras
- Rugged airborne DVR (AirKnight or Red Hawk)
- Aviation-grade mounts and cabling
- GPS/audio integration options
- Documentation and installation support
Ready to outfit your R22?
Contact us for a quote, spec sheet, or consultation.
