HD-SDI High Definition Bullet & Cube Video Cameras

Bad Wolf Technologies HD-SDI, 3G-SDI, and CVBS PAL / NTSC cameras are specifically matched with the AirKnight HD series of airborne rugged video recorders for the optimal performance or can be used for direct viewing on a monitor. They are specifically engineered for high performance, durability in harsh environments, compact size and ease of use.

Standard Definition ( SD ) Video Cameras – Upgrade your existing standard definition camera

Bad Wolf Technologies also offer a line of high resolution standard definition 600TVL (600 television lines of resolution) cameras which withstand the rigors of the harsh environments our systems operate in. These cameras are best used with legacy standard definition products or for downlink solutions to save on bandwidth. They may also be used with the Bad Wolf Technologies AirKnight HD line of recorders through CVBS NTSC or PAL video in. If you are still using standard definition and may not upgrade to high definition for whatever reasons, this camera is for you. No matter what or how good your existing SD camera is, this one will “blow” it away.

HD Mini Cube Camera – 29mm x 29mm

The HD Mini Cube Camera features full high definition 1080p60/30 resolution at true 3G SDI quality.

  • Full HD 1080p60 3G-SDI and 1080p30 HD-SDI cube camera
  • 1/2.8” 2.38 Megapixel Sony Exmor CMOS Sensor
  • Fully Adjustable Settings.
  • Easy to Mount.
  • C/CS Mount Lens options available

HD Nano Bullet Camera – 19mm x 56mm

Bad Wolf Technologies HD Nano 19mm Bullet Camera is the smallest bullet style camera available on the market and features full high definition 1080p resolution while being compact and durable.

  • 2.1 Megapixel, 1/3″ Panasonic Color CMOS sensor
  • Full HD high definition: 1080p60 3G-SDI & EX-SDI, 1080p30 HD-SDI
  • Video Out, 2 x BNC
    • 1 x BNC: 3G-SDI / EX-SDI / HD-SDI
    • 1 x BNC: CVBS Analog (NTSC or PAL)
  • Day & Night: Auto, Color, B&W
  • Dimensions: 19 mm x 56 mm
  • Weight: 80 grams
  • Water Proof to IP67
  • QUICK DISCONNECT OPTION
  • MCR5 burn-proof Tefzel wiring harness (with certs) option
  • 6 Lens Options (20 to 115 degrees FOV)

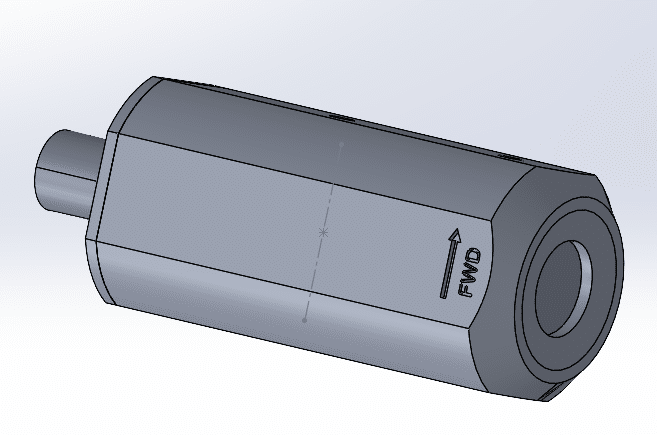

Helicopter Hoist Camera

Bad Wolf Technologies llc is proud to introduce a brand-new hoist camera. This rugged helicopter hoist cam handles vibration, shock, fresh & saltwater spray and submersion with ease. It has Bad Wolf Technologies 2nd generation aviation and shipborne power supply. The new power supply is designed to meet rigorous RFI/EMI and environmental requirements found in military and civilian aviation and marine applications. Tested to DO-160G EMI/RFI and environmental requirements. Bad Wolf Tech hoist cam installs in Sikorsky S92 helicopters without a need to change the existing camera mount or camera wiring harness.

Datasheet

E700 Bullet Camera – SD Standard Definition

As the name suggests, the “SD-NANO” is an analog only version of Bad Wolf Technologies “HD-NANO” bullet camera. E700 stands for the follow-on to the E600 analog camera. SD-NANO is our lightest and smallest high-end bullet / lipstick camera yet.

  • 1/3″ SHARP (960H) CCD
  • High Sensitivity
  • 700TVL (520K Pixels)
  • Rated to IP67 standard (water/weather/dustproof)

CVBS – E600 Bullet Camera – SD Standard Definition

The E600 Bullet Camera is one of the most popular aviation cameras. Small, compact and light, the E600 is perfect for aviation and rugged environments.

  • Rugged camera design with 1000TVL of resolution.
  • Vibration Proof – internal circuitry is potted to minimize vibration effects.
  • Waterproof to IP67.
  • Multiple user changeable lenses available!
  • Excellent performance.
  • Great Price.

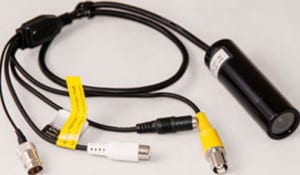

HD Mini Bullet Camera – 23mm x 77mm

Datatoys 23mm HD Mini Bullet Camera features full high definition 1080p resolution while being compact and durable. This is the most popular cameras choice for the Aviation Market.

  • 2.1 Megapixel, 1/3″ Sony Exmor Color CMOS sensor
  • Full HD high definition 1080p30 HD-SDI bullet camera
  • Fully Adjustable Settings.
  • Water Proof to IP67.
  • Digital Day and Night
  • 6 Lens Options (20 to 115 degrees FOV)

HD Mini Bullet Camera with Quick Disconnect @ rear of camera chassis – 23mm x 77mm

  • Exclusive to Bad Wolf Technologies, this  HD-SDI Mini Bullet Camera has a single Hirose connector plug built into the rear of camera chassis and is designed to run both HD-SDI  signal and Power through the same harness. No more running multiple cables.
  • Full HD high definition 1080p30 HD-SDI bullet camera.
  • Single Quick Connect / Quick Disconnect on Camera for Ease of Install and Removal.
  • Proprietary MCR5 aircraft grade Tefzel shielded wiring harness.
  • Multi-Core Shielded Video Cable runs both HD-SDI high speed video signal, OSD communication &  power at the same time.
  • Burn-proof harness option with certs available.
  • “FAA friendly.”
  • Fully Adjustable Settings.
  • Save Time, Money & Increases productivity:
  • Easy to Mount.
  • Easy to Remove.
  • Saves on Labor.
  • Saves on Cabling Costs.
  • Save Weight – a must for UAV and light aircraft.
  • 6 Lens Options (20 to 115 degrees FOV).

Marshall Electronics HD Cameras

Marshall Electronics’ Optical Systems Division supplies lens and camera products to end-user and OEM customers worldwide. They are a global OEM optical products supplier to Tier-1 automotive, leading IP camera, industrial, security, machine vision, military and police equipment Original Equipment Manufacturers.

Slow Motion (High Speed) Cameras

Choose from two different options when filming at high speed. These cameras are designed to grab video smoothly and cleanly.
