Record Audio and Video

Record Multiple Cameras

Get all the great views from your flight! Record two channels as separate video files, or Picture-in-picture. Want more? Add up to 4 cameras with our picture-in-picture processor or video switcher. Use your already installed Bullet or Gimbal cameras with available BNC and RCA adapter cables, or get a complete system with Datatoys cameras!

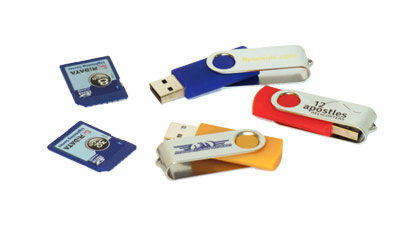

Record to USB and/or SD Cards

Create multiple copies while in flight, record to multiple SD or USB flash drive while in flight.

Great for Flight Tours! “The old way of burning DVDs worked but can be time consuming.” With the Datatoys Digital Copy Concept, just pop out the USB flash drive at the end of a flight and hand it to your customer. Drives can be preloaded with stock footage, coupons, and still images. Drives can also be printed with your logo right on the USB flash drive! Do not miss out on sales simply because customers cannot wait for DVD’s!

Aviation Headset Audio

Video is only part of the experience! Include all headset audio throughout your flight with the included Aviation Headset Cable or Ambient Microphone. Cables simply plug into your audio panel and any GA headset on the market. Do not worry rotorheads, helicopter headset cables are available as well!

High Quality, Small Files

Have your cake and eat it too! AVC/H.264 compression is designed for high-definition video and offers the highest quality with maximum efficiency; Meaning you get the highest video quality and the smallest files sizes. Universal file containers allow for easy editing and playback on a PC or Mac. 16 mbps combined with advanced compression offers video quality up better than a DVD, even in standard definition.

Record Data & Overlay

Record GPS Data

Record your 3-D flight path with a Built-in SiRF III WAAS enabled GPS. Record Speed, Altitude, and Position for later flight analysis.

Overlay Data

Overlay important information from the built-in GPS onto the video . Overlay includes; Time/Date, Location, Speed, Altitude, and User Entered Text.

Playback with FlightSync™

Log data in a standard file and review with FREE FlightSync Software! With FlightSync, analyze your 3-D flight path in Google Earth simultaneously with your recorded video and flight information

Control

Touch Screen

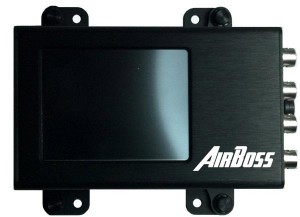

Functionality of the AirBoss is at your fingertips. A 3.5” Sharp LCD and on screen display allows you to access menus to change settings, playback video, and initiate streaming. View one or two channels in real time!

Record Stop/Start Switch

Slim down your post flight editing by starting and stopping the recording by the flip of a switch. Mount our Start/Stop Switch on the dash. When LED Indicator lights up you know there is power to the unit. When flipped the LED Indicator will flash telling you it is recording. As simple as that!

Control via RS-232

Access the robust AirBoss API through RS232 for complete DVR control.

Record, Playback, Stream, and Setting Changes.
Access and control real time on screen text overlay.

Connect

Connect multiple NTSC or PAL cameras using BNC or RCA adapters cables, or get a quote for a complete system with Datatoys Bullet Cameras.

Datatoys Bullet Cameras – E600

High resolution, waterproof, and proven, the E600 is the camera of choice for exterior mounting.

Aviation Grade Tefzel Cabling

Run your cameras to their desired locations with our custom made; Aviation Grade Tefzel Cabling. A 360 degree braided shielding provides 85% coverage, shielding from noisy aircraft radios.

Military Grade Connectors

Connect your cameras with rugged and weatherproof Military Grade 6-Pin connectors. Easy to connect, and positive locking, makes installation a breeze!

Protection for your AirBoss

Great Warranty with Excellent Support!

A one year warranty that covers your unit front to back. At Datatoys we take pride in our customer support. Just call us (414) 639-9085!

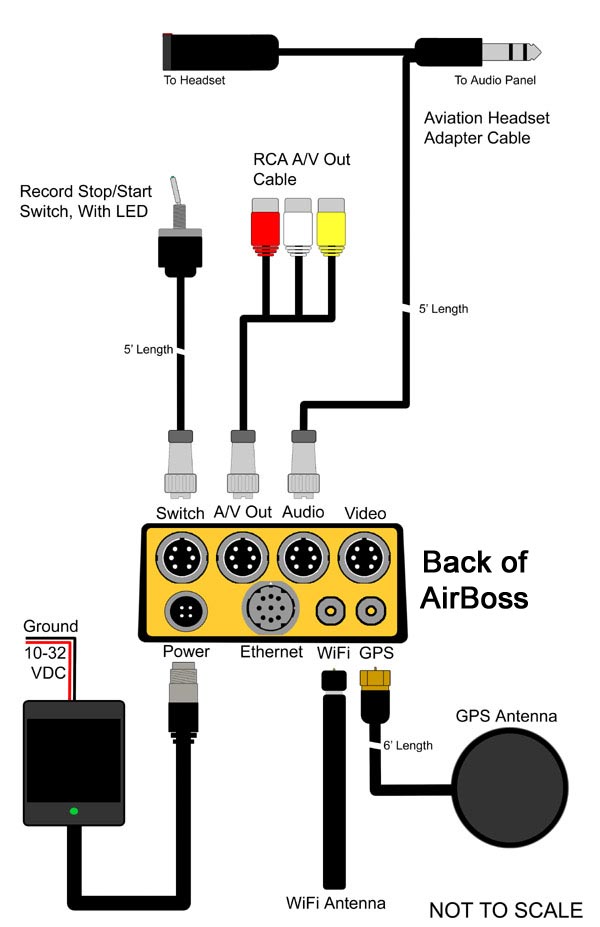

AirBoss Recorder
- Media Ports(Internal)
  - 2 SD Slots (SD, SDHC)
  - 2 USB Port, for USB flash drive or expansion
  - 1 USB Port, for download

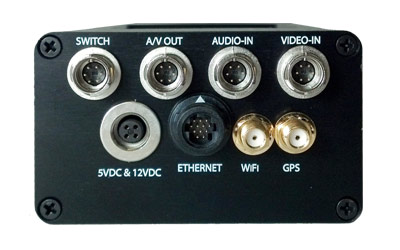

- Connections (Rear Panel)
  - Video (2 x Composite)
  - Audio (2 x Stereo)
  - Auxiliary (Switch, RS232)
  - AV-Out (1 x Composite, 2 x Audio)
  - Ethernet
  - Power
  - GPS Antenna
  - WiFi Antenna
- Data Module
  - GPS SiRF StarIII
    - 3M GPS Antenna
  - WiFi 2.4Ghz b,g
    - WiFi Antenna (Rubber Ducky Style)
- USB 2.0 Download Cable
- Power Supply – 10-32VDC Input
Plus Pack
- E600 Bullet Camera
- Extension Cable at 3, 6, 9, or 12 Feet (Longer Lengths Available)
- SuperClamp or Suction Mount
- Click Mount
- Universal Mount
- Aviation Headset Adapter (U174 Helicopter Type Available)

Additional Plus Pack
- E600 Bullet Camera
- Extension Cable at 3, 6, 9, or 12 Feet (Longer Lengths Available)
- SuperClamp or Suction Mount
- Click Mount
- Universal Mount
- Y-Box for Video Inputs, Plus 1ft Extension Cable

Specifications

Model	AirBoss
Video	Inputs – 2 Composite (NTSC/PAL) Resolution 720 x 480 at 30p 720 x 576 at 24p 640 x 480 at 30p 320 x 240 at 30p Compression – H.246/AVC Bitrate – 16mbps
Audio	Inputs – 2 x Stereo Inputs Line Level Compression PCM8 or PCM16 or ALAC
Media & Connectors	Media 2 x SD, SDHC 2 x USB 2.0 1 x USB Mini-B (Download) Connectors Video (HRS-LF) Audio (HRS-LF) Switch/RS232 (HRS-LF) AV-OUT (HRS-LF) Ethernet (HRS HR-30) GPS (SMA) WiFi (SMA 2.4ghz) Power (Binder 712)
Data & Overlay	Data File Type KML (Google Earth) CSV GPX (Contact Us) Data Elements Speed – GPS (SiRF WAAS III) Altitude – GPS Location – GPS Time – Manual or GPS Text Overlay GPS Time/Date User Entered Text RS-232 ASCII Text
Power Supply	Voltage Input – 10 to 32VDC Power Consumption – 5W (w/o cameras) Maximum Output – 1.25A at 12VDC
Physical	Size – 128mm x 72mm x 34mm, 4.98″ x 2.83″ x 1.34″ (l x w x h) Weight – 310g, 11oz Storage Temperature – -50C to 95C Operational Temperature – -40C to 85C Shock – 2000G
